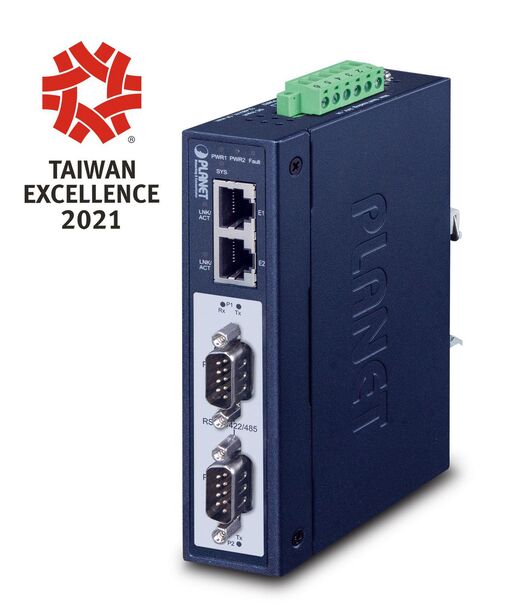

IsyCorp- - Descrizione in italiano PLANET Ip30"dustrial 2-port Rs232/rs422/rs485 Modbus - Gateway (2 X 10/100base-tx, 40~75 Degrees C, 15kv Isolati PN: IMG-2200T PLANET

Marche

Marchi Principali Distribuiti

Categorie

Scegli solo i prodotti...

Last Week (4.030) Novità (35.369) Consegna Immediata (262) Disponibili Magazzino (108.931) in Promo(63) al Costo(17)

Tutti i Costi Finanziari sono esposti trasparentemente.

Tutti i prezzi NON sono comprensivi di IVA.

SCHEDA PRODOTTO

PartNumber: IMG-2200T	PLANET Ip30"dustrial 2-port Rs232/rs422/rs485 Modbus	(Carta di Credito Web )	341,62 € + IVA
	Gateway (2 X 10/100base-tx, 40~75 Degrees C, 15kv Isolati
		Pagamento e Prezzo si cambiano nel Carrello, inserito il primo articolo.

	Marchio:PLANET
	Codice:153594.01
	PartNumber:IMG-2200T
	EAN:4711605285148
	Disponibile c/o Vendor
	Notifica Disponibilità




	Altri articoli del Produttore: PLANET
	Altri articoli nelle Categorie:/ Hardware / Networking / Converter

Economical Solution for Industrial Modbus TCP/RTU/ASCII Network Integration PLANET has added the Industrial Modbus TCP/IP Protocol to its easily-integrated industrial management level products that come with SCADA/HMI system and other data acquisition systems on factory floors. Moreover, the industrial IT SNMP network is upgraded to the industrial automation Modbus TCP/IP network. PLANET industrial management level products with the Modbus TCP/IP Protocol offer flexible network connectivity solutions for the industrial automation environment. To complete the industrial automation environment application solution, PLANET has announced a first industrial level 2-port RS232/422/485 Modbus Gateway, IMG-2200T, a bridge that converts between Modbus TCP/IP Protocol and Modbus RTU/ASCII Protocol. It features a wide operating temperature range from -40 to 75 degrees C and a compact but rugged IP30 metal housing. A Conversion Bridge for Flexible Network Deployment The IMG-2200T can be a conversion bridge between the equipment with the Modbus RTU/ASCII Protocol and the administrator workstations that run the Modbus TCP/IP Protocol. The RS232/422/485 serial interface of the IMG-2200T provides the Modbus RTU/ASCII operation mode and various baud rate options to meet the demand of integration between the Modbus TCP/IP Protocol, Modbus RTU Master/Slave Protocol and Modbus ASCII Master/Slave Protocol. The advantage of having the IMG-2200T is to assist users to build an industrial environment between the Modbus TCP/IP Protocol and the Modbus RTU/ASCII Protocol easily, thus offering an application solution to the industrial control equipment without Ethernet ports and the industrial control equipment can only control through an industrial PC workstation or industrial control panel. In addition, the effective integration solution of Modbus Ethernet devices, Modbus serial equipment or multi Modbus master / slave in an industrial hybrid network brings the following: - Master mode supports up to 32 TCP slave connection requests - Slave mode supports up to 32 TCP master connections Remote Management The IMG-2200T makes the connected industrial Modbus RTU/ASCII equipment become IP-based facilities and is able to connect to the Modbus TCP/IP network via its RS232/422/485 serial interface and 10/100BASE-TX RJ45 Ethernet port. It provides a remote web management and telnet interface for efficient remote network management. The IMG-2200T also provides PLANET Modbus Gateway utility tool and supports PLANET Smart Discovery utility to help network administrator to easily get the current IP subnet address information or change the IP subnet address setting of the IMG-2200T. Modbus Serial Port State Monitoring The IMG-2200T shows the details of the total bytes transmitted and received on the RS232/422/485 serial interface, and the detailed total number of frames transmitted and received on the remote web/telnet management interface. This function allows network administrator to check the status and statistics of the IMG-2200T via the single RS232/422/485 serial interface. Stable Performance in Hardened Environment Design The IMG-2200T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the IMG-2200T to be placed in almost any difficult environment. The IMG-2200T is equipped with a compact IP30-rated metal case that allows wall mounting for efficient use of cabinet space. The IMG-2200T also provides an integrated power supply source with wide-ranging voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications. Effective Alarm Alert for Better Protection The IMG-2200T comes with a Fault Alarm feature which can alert the users when there is something wrong with the Serial Device Server. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. The IMG-2200T provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Dual Power Input for High Availability Network System The IMG-2200T features a strong dual power input system with wide-ranging voltages (12V~48V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IMG-2200T via Power Supply 2 without any break of operation.

	Confezione:
	Peso Lordo: 2 Kg Dimensioni Lorde: 100x300x200 mm

	PLANET - Sito web:http://
