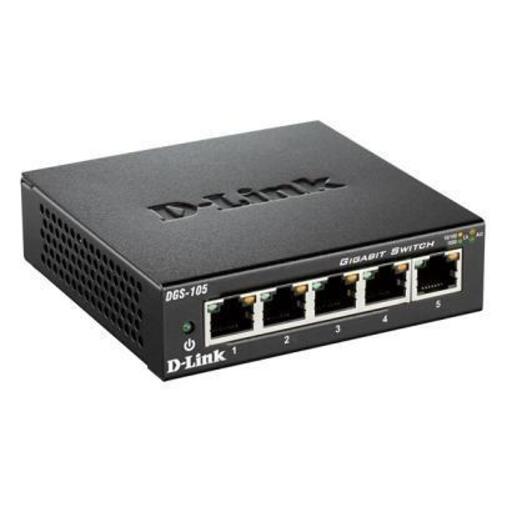

D-Link DGS-105. Trasmissione dati: 1 Gbit/s, 10/100/1000Mbps, 2000 Mbit/s, 10 Gbit/s. Networking: 2000 ENTRATE, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Caratteristiche di gestione: No gestito. Connettività: 1000BASE-T, 100BASE-TX, 10BASE-T. Memoria: 0.128 MB. Peso e dimensioni: 100 x 98 x 28 mm, 286 g. Gestione energetica: 3.10 W, 1 A, 5 V. Durata: 1688338 h. Certificati di sicurezza: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS. Condizioni ambientali: 10 - 90 %, 0 - 50 °C, 10 - 70 °C, 5 - 90 %. Illuminazione/Allarmi: Link, Power, Si. Colori: Nero. Material: Metallo

Standards

• IEEE 802.3 10BASE-T Ethernet


• IEEE 802.3u 100BASE-TX Fast Ethernet


• IEEE 802.3ab 1000BASE-T Gigabit Ethernet


• ANSI/IEEE 802.3 NWay auto-negotiation


• IEEE 802.3x flow control


• IEEE 802.3az Energy Efficient Ethernet (EEE)

Layer2 Features

• MAC address table: 2K


• Auto MDI/MDIX crossover for all ports


• Store-and-forward switching scheme


• Full/half-duplex for Ethernet/Fast Ethernet speeds


• Full-duplex only for Gigabit Ethernet speed


• Jumbo Frames: 9000 Bytes

Switching fabric

• 10 Gbps

Data Transfer Rates

• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)


• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)


• Gigabit Ethernet: 2000 Mbps (full duplex)

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port


• Fast Ethernet: 148,800 pps per port


• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 128 KB

LED Indicators

• Per port: Link/Activity/Speed


• Per device: Power

Quality of Service (QoS)

• Supports 802.1p QoS


• 4 Queues, Strict Mode

Green features

• Energy Efficient Ethernet (EEE) standard


• D-Link Green: power saving by cable length detection


• RoHS compliant

Power

• External 5 V/1 A Level “V” Power Adapter

Power Consumption (DC input)

• Standby: 0.5 W.


• Maximum: 2.01 W.

MTBF

• 1,688,338 hours

Temperature

• Operating: 0 to 50 ˚C


• Storage: -10 to 70 ˚C

Humidity

• Operating: 10% to 90% RH non-condensing


• Storage: 5% to 90% RH non-condensing

Dimensions (W x D x H)

• 100 x 98 x 28 mm

Certifications

• FCC Class B


• ICES-003 Class B


• CE Class B


• C-Tick Class B


• VCCI Class B


• cUL


• CB

	Confezione:
	Peso Lordo: 0,31 Kg Dimensioni Lorde: 9000x10000x9000 mm
