  SCHEDA PRODOTTO

PartNumber: IGS-820TF |
|
PLANET Ip30 Compact Size 6-port 10/100/1000t + 2-port |
|
(Carta di Credito Web ) |
164,07 €
+ IVA
|
 |
| 100/1000x Sfp Gigabit Ethernet Switch (-40 To 75 Degree C |
|
|
|
| |
|
Pagamento e
Prezzo si cambiano nel Carrello, inserito il primo articolo. |
|
| |
|
|
|
|
| Marchio:PLANET |
|
|
|
|
| Codice: 3152.01 |
|
|
|
|
| PartNumber:IGS-820TF |
|
|
|
|
 Disponibile c/o Vendor
|
|
|
|
|
| Notifica Disponibilità |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
 Altri articoli del Produttore: PLANET |
|
|
|
| Altri articoli nelle Categorie:/ Hardware / Networking / Switch |
|
|
|
|
|
| . |
|
Compact Size for More Practicability and Convenience

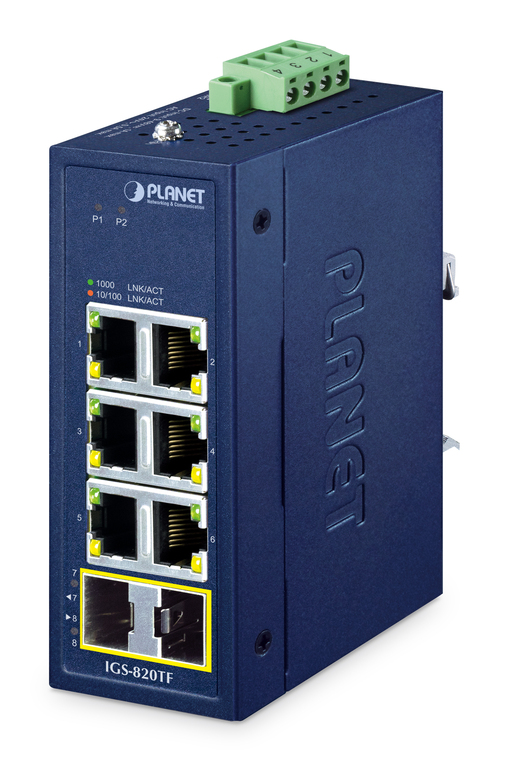

PLANET IGS-820TF Compact Industrial 6-Port 10/100/1000T and 2-Port 1000X SFP Gigabit Ethernet Switch is designed for industrial use, featuring 6 auto-negotiation 10/100/1000BASE-T RJ45 ports and 2 1000BASE-X SFP interfaces. It supports backward compatibility with 100BASE-FX transceivers, is housed in an IP30-rated rugged but compact case, and is equipped with a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-820TF is capable of operating in harsh environments with a temperature range from -40 to 75 degrees C.
As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGS-820TF simplifies industrial network deployment with its Plug and Play feature. Beyond offering stable and reliable fast data and power transmission, it aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This integration facilitates real-time decision-making, operational efficiency, and valuable data analysis across various industrial applications.
Fiber-Optic Link Capability Enables Seamless Extension of Network Deployment
The IGS-820TF is equipped with two 1000X SFP Gigabit Ethernet ports that support dual-speed functionality, compatible with both 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. These ports feature auto-detection, allowing administrators to flexibly select the most suitable SFP transceiver based on the required transmission distance or speed. This adaptability ensures efficient network extension, with transmission distances ranging from 550 meters to 2 kilometers using multi-mode fiber, and up to 10/20/30/40/50/60/70/120 kilometers with single-mode or WDM fiber.
The fiber-optic uplink capability guarantees high throughput to all connected nodes and extends the network over long distances, making it ideal for uplinking to backbone switches or monitoring centers. Whether implementing FTTH (Fiber to the Home), FTTC (Fiber to the Curb), or FTTB (Fiber to the Building) solution, the IGS-820TF simplifies the process for both ISPs and enterprises. Its robust design and secure topology enable it to handle large volumes of data seamlessly, connecting to metro switches, backbones, or high-capacity servers with ease.
Low Power Consumption for ESG Principles
The IGS-820TF adopts advanced green networking technology that meets the Environmental, Social, and Governance (ESG) principles. It provides link-on cable length power-saving and link-down power-saving features. These characteristics enable the IGS-820TF to maintain extremely low power consumption even under full-load operation, effectively conserving energy while delivering outstanding performance. Compared to the IGS-801T, using the IGS-820T can save over 50% of energy consumption.
With Auto Power Savings and the IEEE 802.3az Energy Efficient Ethernet (EEE) protocol, the IGS-820TF can automatically detect cable link status and network traffic, adjusting its power consumption accordingly. When device activity is lower, the switch consumes less power, achieving greater energy efficiency.
Dual Power Input for High Availability Network System
The IGS-820TF features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) to enhance system reliability and uptime in automation networks. For example, if power supply 1 fails, the hardware failover function is automatically activated to power the IGS-820TF through power supply 2, ensuring uninterrupted operation.
High Switch Performance
The IGS-820TF delivers high-performance switch architecture, with 6 Gigabit Ethernet ports and 2 SFP interfaces providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps. Its 4K MAC address table supports wire-speed packet transfer without packet loss. The flow control function further ensures fast and reliable data transfer for demanding industrial applications.
Plug and Play
All RJ45 copper interfaces in the IGS-820TF support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5, or 5e cables. The auto-MDI/MDI-X feature allows seamless connection to any Ethernet device without requiring special straight-through or crossover cables. Additionally, the IGS-820TF includes 2 1000BASE-X SFP interfaces that provide flexible and reliable fiber-optic connectivity for long-distance, high-bandwidth applications. It supports Plug and Play SFP module installation with hot-swap functionality, allowing users to easily add or replace SFP modules without disrupting system operations. These features ensure versatile and uninterrupted network deployment in diverse industrial environments.
Flexible and Easy Installation with Limited Space
The compact design of the IGS-820TF makes it ideal for narrow environments, such as wall enclosures. It supports both wall mounting and DIN-rail installation, ensuring flexibility and convenience in space-constrained locations.
Learn more: https://www.planet.com.tw/en/product/igs-820tf
|
Confezione: |
|
| |
Peso Lordo: 2 Kg
Dimensioni Lorde: 100x300x200 mm |
|
| |
|
|
|
PLANET - Sito web:http:// |
|
| |
|
|
| |
|
|
|
|
| |
|
