Flexible, Reliable and Industrial-grade Backbone Network Distance Extension So-lution

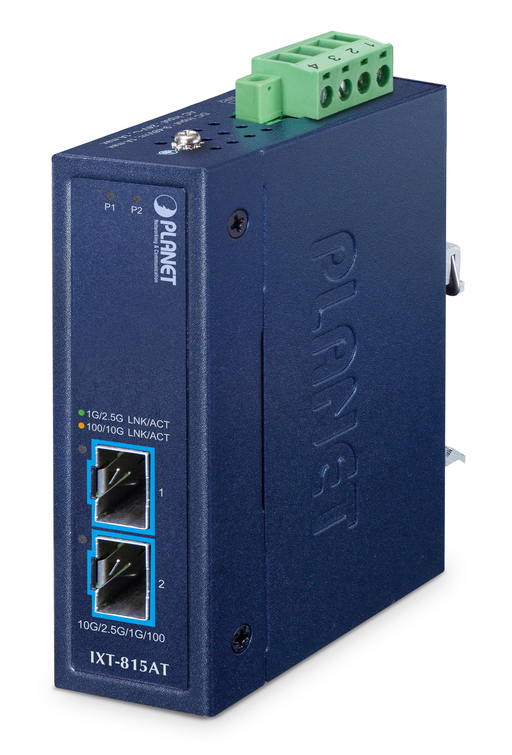

The PLANET IXT-815AT is the smallest compact industrial-grade 10G Ethernet media converter, delivering non-blocking wire-speed performance and exceptional flexibil-ity for 10 Gigabit Ethernet extension in harsh industrial environments. It features dual 10G/2.5G/1GBASE-X and 100BASE-FX SFP+ fiber interfaces, housed in a rugged yet compact IP30-rated enclosure with a redundant power system and a wide operating temperature range from -40 to 75 degrees C.
The IXT-815AT supports single-mode to multi-mode conversion and can cascade fiber optic cables to extend transmission distances. It also functions as a 10GPON to 10G Ethernet bridge and supports both XGS-PON and GPON ONT SFP modules. With its plug-and-play design, no software installation is required, enabling quick and easy deployment.
Versatile Features to Meet Diverse Networking Needs
The IXT-815AT delivers broad bandwidth and powerful processing capabilities. Its du-al 10GBASE-X SFP+ fiber-optic interfaces support multiple speeds—10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX, and 100BASE-FX—allowing administrators to select the appropriate SFP/SFP+ transceiver based on distance and speed requirements. The device also supports flexible conversion between multi-mode and single-mode fiber, extending transmission distances from 300 meters to 80 kilometers using 10GBASE-SR or 10GBASE-LR modules.
Supported conversion scenarios include:
•10GBASE-X fiber to 2.5G/1G/100BASE-X fiber
•Multi-mode fiber to single-mode fiber
•Duplex fiber to simplex fiber
•10Gbps XGSPON / 2.5Gbps GPON fiber to 10Gbps Ethernet fiber
With dual high-speed ports, the IXT-815AT can connect to servers, switches, storage systems, and wireless access points. It also supports bridging between 10GPON and 10Gbps Ethernet, making it ideal for data center cloud computing, enterprise back-bone networks, and inter-building deployments.
Two Fiber Optic Ports Double the Deployment Distance
The IXT-815AT provides two 10G fiber ports that support both single-mode and mul-ti-mode fiber, enabling conversion between PON and Ethernet. With fiber optic con-nectivity on both ends, the transmission distance can reach up to 120 km, significant-ly extending service coverage and deployment flexibility.
Stable and Efficient Chipset with High Network Performance
The IXT-815AT features two built-in 10GBASE-X SFP+ ports to ensure stable and high-speed data transmission. With a 40Gbps switching fabric and support for 12K jumbo frames, it efficiently handles large volumes of data traffic. In addition, its 4K MAC address table and VLAN pass-through functionality enhance overall network management and performance.
Environmentally Hardened Design
The IXT-815AT features a slim-type IP30-rated metal case, allowing easy deployment in demanding industrial environments. With IP30 protection, it offers a high level of immunity against electromagnetic interference and heavy electrical surges, which are commonly encountered on plant floors or in curbside traffic control cabinets. De-signed to operate in extreme temperatures ranging from -40 to 75 degrees C, the IXT-815AT can be installed in nearly any harsh environment. It also supports both DIN rail and wall mounting for efficient use of cabinet space.
Convenient and Reliable Power System
To enhance operational reliability and flexibility, the IXT-815AT is equipped with two DC power input connectors for redundant power supply installation. It also features an integrated power source that supports a wide voltage range (9 to 48V DC or 24V AC), making it suitable for global applications requiring dual or backup power inputs. This design allows seamless integration into the customer’s automation network, im-proving overall system reliability and uptime.
Robust Protection
The IXT-815AT provides Ethernet ESD protection with ±6kV DC contact discharge and ±8kV DC air discharge, enhancing product stability and protecting users’ networks from damaging ESD attacks. This ensures stable and uninterrupted operation.
Learn more: https://www.planet.com.tw/en/product/ixt-815at
 |
Confezione: |
|
| |
Peso Lordo: 2 Kg
Dimensioni Lorde: 100x300x200 mm |
|
| |
|
|
|
