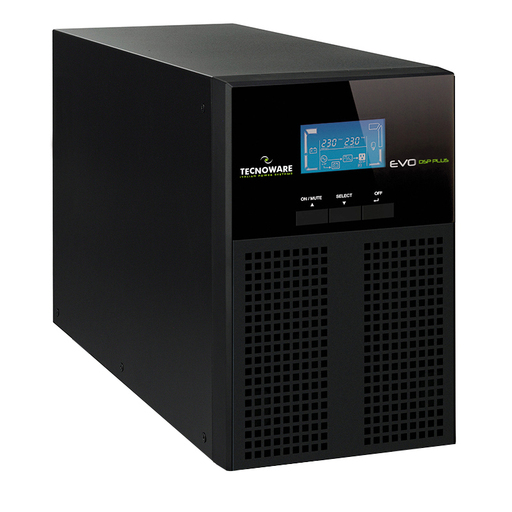

UPS COMPLIES WITH CEI 0-16 for the power supply and protection of the release coils and protection relays of the switchboards of MV / LV transformer substations. CAB EVO DSP PLUS 1.000 - Power 1.000 VA PF 0.9. On Line Technology (VFI) DSP, Efficiency 94%, Input / output 230 / 230Vac 50 / 60Hz, dimensions 14.5x22x28.2 weight 10 Kg, autonomy 10 min, contains 2 12Vdc 9AH batteries. POWER RESERVE to always guarantee the re-arming of the coil and the restoration of the full functionality of the cabin, automatic bypass, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, MODBUS or Dry Contact card (optional).
Confezione:
Peso Lordo: 10 Kg
Dimensioni Lorde: 100x300x200 mm
Tutti i prezzi NON sono comprensivi di IVA.
