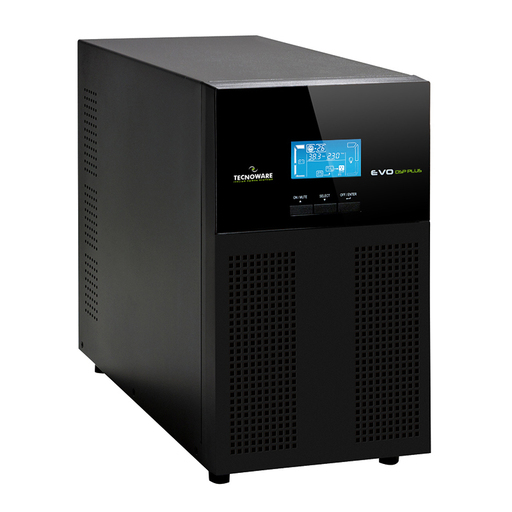

UPS COMPLIES WITH CEI 0-16 for the power supply and protection of the release coils and protection relays of the switchboards of MV / LV transformer substations. EVO DSP PLUS 3.000 - Power 3.000 VA PF 0.9. On Line Technology (VFI) DSP, Efficiency 94%, Input / output 230 / 230Vac 50 / 60Hz, dimensions 19x31.8x42.1 cm, weight 27 Kg, autonomy 10 min, contains 6 12Vdc 9Ah batteries. POWER RESERVE to always guarantee the re-arming of the coil and the restoration of the full functionality of the cabin, automatic bypass. Connector for connection to additional Box Battery, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, MODBUS or Dry Contact card (optional).
Confezione:
Peso Lordo: 27 Kg
Dimensioni Lorde: 100x300x200 mm
