  SCHEDA PRODOTTO

PartNumber: IES3000-8GT4GS-2BP-2P220 |
|
3oneData 4*1000m Sfp(sfp Slot) + 8*10/100/1000baes-t(x) |
|
(Carta di Credito Web ) |
686,50 €
+ IVA
|
 |
| (RJ45), 2xPSply:220vac, Bypass Function |
|
|
|
| |
|
Pagamento e
Prezzo si cambiano nel Carrello, inserito il primo articolo. |
|
| |
|
|
|
|
| Marchio:3oneData |
|
|
|
|
| Codice: 66463.03 |
|
|
|
|
| PartNumber:IES3000-8GT4GS-2BP-2P220 |
|
|
|
|
 Disponibile c/o Vendor
|
|
|
|
|
| Notifica Disponibilità |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
 Altri articoli del Produttore: 3oneData |
|
|
|
| Altri articoli nelle Categorie:/ Hardware / Networking / Switch |
|
|
|
|
|
| . |
|

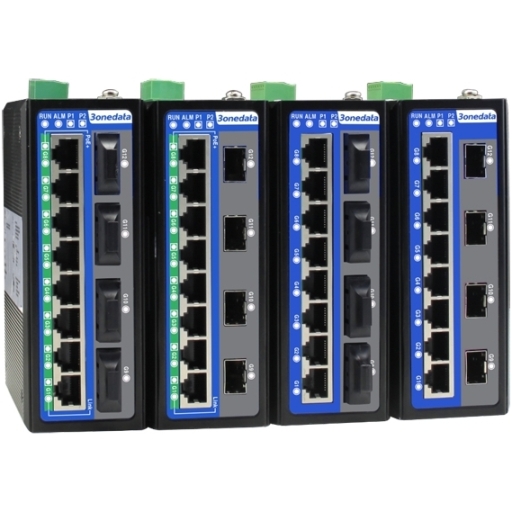

IES6312 series are 12-port full gigabit layer 2 managed industrial PoE/non-PoE Ethernet switches. Their PoE power supply conforms to the protocol standards of IEEE 802.3af/at. This series have 8 types of product, and provide gigabit copper ports, gigabit PoE ports, gigabit fiber pots, gigabit SFP slots and other ports. They support multiple power supply schemes including 100~240VAC, 12~48VDC, 24VDC PoE and 48VDC PoE, and adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. Moreover, it supports CLI, WEB, Telnet, SNMP and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.
The input DC power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can restore factory defaults. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, aerospace, intelligent manufacturing, military project and other industrial fields.
Features and Benefits
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server and DHCP client could be used for allocating IP address of different strategies
File management is convenient for rapid configuration and online upgrade of the device
Log management records boot information, operation information and connection information
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for the port real time traffic statistics
Support Console/Telnet/WEB management
User password can conduct user hierarchical management to improve the device administrative security
Radius server authentication, anti-attack control, ACL and 802.1X authentication could strength the flexibility and security of network
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unknown unicast
SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing
TELNET configuration and HTTPS configuration could ensure the access security of data
VLAN can simplify the network planning
Port trunking and LACP can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
IGMP-snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
SW-Ring, STP/RSTP and ERPS can achieve network redundancy, preventing network storm
Ping, Traceroute and Port Loopback could achieve network diagnosis and troubleshooting
PoE could power device over Ethernet, thus decreasing the cable connection of powered devices
3oneData 8*10/100/1000Baes-T(X) (RJ45) + 4*1000M SFP(SFP slot), dual power supply:220VAC, Bypass function
|
|
| |
|
